Undersink Filtration
Undersink Filtration domestic water filtration products
Chem Pro »
HM Pro »
FRO-4 »
6 Stage Reverse Osmosis Unit »
Whole House Water Filter »
Domestic water filter systems are becoming increasingly popular as public awareness of water quality issues increases. In line with this growing market, we have available a range of drinking water filtration and treatment systems to suit most domestic and small commercial applications.
The correct product for you will depend upon the particular problems that you experience with your water supply. If it is simply a question of improving the taste and overall quality of your water then either a Chem-Pro or Eco-Pro System will suffice. If complete removal of heavy metal contaminant is required then a HM-Pro System will provide the answer. We can also offer a range of Reverse Osmosis and Ultra Violet Systems.
Domestic UV units
Our range of Undersink domestic UV units provides a simple and effective way of eliminating bacteria from your drinking water. Our range of Undersink domestic UV units provides a simple and effective way of eliminating bacteria from your drinking water. The smallest of the units (UV-PRO1) is a 22 litre per minute system that has been designed to mount on the side wall of a 600mm deep undersink cupboard and yet allow the UV lamp to be changed without having to remove the unit from the wall. You simply need to disconnect the lamp and remove it and replace and reconnect the new lamp. The water does not need to be turned off and the whole lamp change process is carried out in a couple of minutes. This simplicity of use means that the services of a plumber to replace the lamp is a thing of the past and represents a real leap forward in design of Undersink UV for water treatment.
UV-PRO2 and UV-PRO3 units are designed for the larger property but their compact design means that they may be fitted quite unobtrusively in a position where lamp access is readily available. Solid state electronics across the range of UV-PRO type UV water treatment units means long life and reliable performance.
Domestic UV units - UV Pro Series
Our range of Undersink domestic UV units provides a simple and effective way of eliminating bacteria from your drinking water. The smallest of the units (UV-PRO1) is a 22 litre per minute system that has been designed to mount on the side wall of a 600mm deep undersink cupboard and yet allow the UV lamp to be changed without having to remove the unit from the wall. You simply need to disconnect the lamp and remove it and replace and reconnect the new lamp. The water does not need to be turned off and the whole lamp change process is carried out in a couple of minutes. This simplicity of use means that the services of a plumber to replace the lamp is a thing of the past and represents a real leap forward in design of Undersink UV for water treatment.
UV-PRO2 and UV-PRO3 units are designed for the larger property but their compact design means that they may be fitted quite unobtrusively in a position where lamp access is readily available. Solid state electronics across the range of UV-PRO type UV water treatment units means long life and reliable performance.
UV-PRO1 - 23 litres / min capacity
UV-PRO2 - 30 litres / min capacity
UV-PRO3 - 45 litres / min capacity
UV Units - Light Industrial and Commercial
A greater public awareness of contamination in water supplies has occurred in recent years which, in turn, has resulted in the successful application of alternative methods of treatment.
Chlorination has been used worldwide since its introduction in 1847 because of its disinfection power and long retention time. Unfortunately when water supplies are chlorinated, it is know that toxic chemicals called Trihalomethanes (THM's), suspected carcinogens, can also be produced in low concentrations.
Complaints about taste, smell and eye irritation are common for chlorinated water which the consumer has suffered for many years. In many applications, an ultraviolet disinfection system can provide an effective solution byremoving the need entirely for chlorination or by allowing much reduced levels of chlorine to be used.
Many local supplies, particularly in remote areas, are only partially or wholly untreated at source. Inevitably, this can lead to outbreaks of stomach upsets, gastroenteritis and many other more serious diseases.
UV treatment can effectively eliminate bacteria associated with CHOLERA, JAUNDICE, DYSENTERY, TYPHOID, and LEGIONNAIRE'S DISEASE as well as destroying viruses such as POLIO, INFLUENZA and HEPATITIS.
A practical and economical solution is the installation of a UV-PRO disinfection system at point of use.
How Does UV Work?
In sufficient doses UV light in the wavelength range of 200 - 280 nanometers disrupts the DNA of microorganisms
which results in the death of the micro-organism.
The Advantages
- UV does not alter taste, odour, colour or pH of the water
- UV does not require the addition of chemicals
- UV does not impart toxic by-products into the water
- UV systems are compact and easy to install
- UV systems require very little maintenance
- Running costs are often those of a household light bulb
Construction

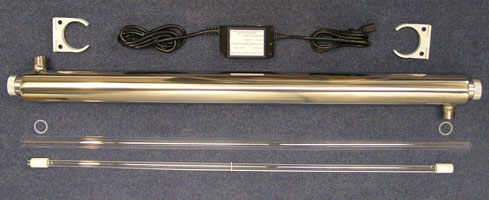

The high efficiency lamp is accommodated in a quartz sleeve which protects the lamp from the water but which allows the UV rays to pass through it. These are housed in a hygienic stainless steel reactor. Units are generally supplied complete with control box and are fitted with the following features:
- Power on indicator
- Lamp running indicator
- Integral 3 pin fused plug
- Installation manual

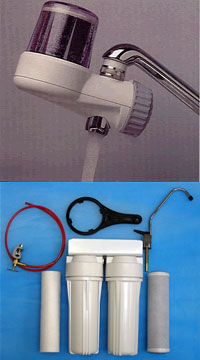

We are pleased to be able to introduce to our product range these prefilter kits that are ideal for use as prefilter units for domestic UV installations. The units may be supplied just as a housing installation or complete with a choice of filter cartridge to make the kit complete. All housing kits include the filter housing, wall mounting bracket and bowl spanner.
SPECIFICATION
- All Polypropylene with Brass thread inserts
- Option 10" and 20" versions
- Accept standard 65mm or 108mm diameter cartridges
- Standard pressure rating up to 8 bar
- Wall bracket included
- Bowl spanner included
PLEASE USE THE LINKS BELOW TO DOWNLOAD THE DATA SHEET YOU REQUIRE:
UV PRO RANGE INSTALLATION INSTRUCTIONS »
WHY RO TAKES A LONG TIME TO FILL TANK »
CARTRIDGE CHANGE INSTRUCTIONS »
UV LAMP / QUARTZ SLEEVE REMOVAL »
CHEM-PRO INSTALLATION INSTRUCTIONS »
HM-PRO INSTALLATION INSTRUCTIONS »
F-RO-4 INSTALLATION INSTRUCTIONS »
INSTALLATION AND OPERATING INSTRUCTIONS - SIX STAGE REVERSE OSMOSIS UNIT WITH PUMP (RP615139715) »
CARTRIDGE CHANGE INSTRUCTIONS FOR F-RO-4 »
TAP INSTALLATION INSTRUCTIONS »
If you have any filtration queries that aren't answered here please don't hesitate to call us on: 01422 377367

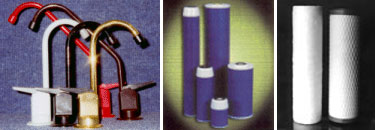

Filter Systems Ltd are now able to offer a wide range of domestic filtration spares and accessories including the following which will fit directly into our range of domestic filtration systems:
The GAC (granular activated carbon) cartridge is used in the Chem-Pro System and will require changing every 6 months depending upon the amount of flow through the system and the level of contamination. Purchasers of the new Chem-Pro System will be contacted by Prosep every 6 months and reminded that the GAC cartridge may need changing.
The HM-Pro System comes complete with a cartridge set comprising of a polypropylene pre-filter and a biquette carbon final filter which enables the removal of heavy metals such as lead, iron, aluminium, mercury and cadmium from your drinking water. This cartridge set may need replacing every 6 - 12 months. Again, this depends upon the flow of water through the system and the level of contamination. Purchasers of the HM-Pro System will also be contacted by Prosep every 6 - 12 months and reminded that the cartridge set may need changing.
The Chem-Pro, HM-Pro and RO-Pro Systems are all supplied with chrome tap. The picture to the left displays a limited range of the taps available from stock at Prosep. The full range includes short and long reach taps which are available in a wide variety of colours to match your home decor or personal preference. (Please ask for details of price and availability.)
The chrome tap supplied as standard with your filter system comes complete with tubing attached. This allows for quick and easy installation of your new domestic water filtration system.
For more information please call us on: 01422 377367 or email us here
